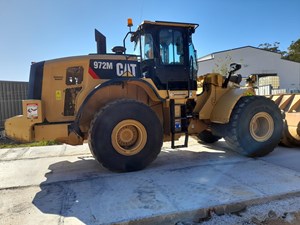

Wheel Loader Cat 972M 2018 7000 hrs
Battery Iso
E Stops
Auto Lube
Rear Camera
Beacon
FINANCE AVAILABLE https://equifund.com.au/newcastle-machinery-sales
Engine Power @ 1,600 rpm - ISO 14396:2002 253 kW
Gross Power @ 1,600 rpm - SAE J1995:2014 256 kW
Engine Model Cat C9.3B
Net Power @ 1,600 rpm - ISO 9249:2007, SAE J1349:2011 239 kW
Note (1) Cat engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3, EU Stage IIIA, and China Nonroad Stage III.
Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011 1785 N·m
Displacement 9.3 L
Engine Torque @ 1,200 rpm ISO 14396:2002 1781 N·m
Gross Torque @ 1,200 rpm SAE J1995:2014 1799 N·m
Note (3) Cat engines are compatible with diesel fuel blended with following lowercarbon intensity fuels up to: 100% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer.
WEIGHTS
Operating Weight 23196 kg
Note Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control cold start, roading fenders, Product Link, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.
TRANSMISSION
Forward - 1 6.7 km/h
Forward - 2 13.5 km/h
Forward - 3 24.2 km/h
Forward - 4 39.5 km/h
Note Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius.
Reverse - 1 7.3 km/h
Reverse - 2 14.8 km/h
Reverse - 3 26.6 km/h
Reverse - 4 39.5 km/h
SOUND
Note (1) ** For machines in European Union countries and in countries that adopt the EU Directives.
Note (2) ***European Union Directive 2000/14/EC as amended by 2005/88/EC.
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level* 108
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) 69 dB(A)
With Cooling Fan Speed at Maximum Speed - Exterior Sound Power Level (ISO 6395:2008) 109 dB(A)
With Cooling Fan Speed at Maximum Speed - Exterior Sound Pressure Level (SAE J88:2013) 76
With Cooling Fan Speed at Maximum Speed - Operator Sound Pressure Level (ISO 6396:2008) 70 dB(A)
With Cooling Fan Speed at Maximum Value - Note Distance of 15 m (49.2 ft), moving forward in second gear ratio.
AIR CONDITIONING SYSTEM
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).
OPERATING SPECIFICATIONS
Breakout Force 174 kN
Note (1) For a machine configuration as defined under Weight.
Note (2) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Static Tipping Load - Full 40° Turn - No Tire Deflection 35244 lb
Static Tipping Load - Full 40° Turn - With Tire Deflection 14849 kg
SERVICE REFILL CAPACITIES
Cooling System 66 l
Crankcase 23 l
DEF Tank 26 l
Differential - Final Drives - Front 57 l
Differential - Final Drives - Rear 57 l
Fuel Tank 303 l
Hydraulic Tank 114 l
Transmission 58.5 l
HYDRAULIC SYSTEM
Implement System - Maximum Operating Pressure 31000 kPa
Implement System - Maximum Pump Output at 2,250 rpm 373 l/min
Hydraulic Cycle Time - Total 10.1 seconds

2018 CAT 972M M
