Just out of Work, New Trucks arriving and updating!

2006 VOLVO A30D

Wheel Loader Cat 950K 1600 Hours Auto lube Scales Battery Iso EStops Rear Cam UHF

2013 CATERPILLAR 950K

Dozer Cat D6TXL 2008
7000 hrs
Pat Blade
Full GPS, needs new Screen
Scrub Cab protection
Battery and Starter Iso
UHF
Rear Camera
Rippers
Full PowerTrain Rebuild as below
Task Priority Status Start Date Due Date % Complete Done/Overdue? Hours/Notes
Rebuild Transmission
Torque converter, LH
RH steering/brake
assemblies, LH and
RH final drive
assemblies,
Transmission pump,
Normal Complete 28/05/2024 4/06/2024 100% Done 7147hrs
Replace LH
pivotshaft seals, Normal Complete 29/05/2024 5/06/2024 100% Done 7147hrs
1000hrs service Normal Complete 30/05/2024 6/06/2024 7147hrs
Rebuild, LH RH
blade angle
cylinders
Normal Complete 31/05/2024 7/06/2024 100% Done 7147hrs
Fit Reversing
camera Normal Complete 22/06/2024 29/06/2024 100% Done 7160hrs
Repair/service Fleet# NMS396 CAT D6T WFH00433

2008 CATERPILLAR D6TXL

Dozer Cat D6R XL Series 3
2006 Model
11,000 Hrs
Pat Blade
Cat Multi Shank Rippers
Full GPS
Battery Iso
E Stops
Rear Cam
UHF
Good Under Carriage
Just out of work

2006 CATERPILLAR D6R XL SERIES III 3

Fork lift FG25ZNT Counter Balance
Dual Fuel, 9600 Hrs, very tidy unit, up down side shift and tilt and Scales, great seat.

MITSUBISHI FG25ZNT

2017 TL8 Hi Flow
Hydraulic Hitch
Battery Iso
E Stops
UHF
AM/FM Radio
Cab Aircon with Front door
Rear Camera
LED Front and Rear work lights
Gr8 4 in 1 Bucket with teeth
3000 Hours, a lot of idle Aircon hours
Needs New Tracks and I`ll order them when a deposit is paid.
These machine are in a class of their own!
ENGINE
- EU Stage V / EPA Tier 4 Emission
Compliant (V3307-CR-TE5B)
- EPA Tier 4 Emission Compliant
(V3307-CR-TE4B)
- Turbocharge
- DOC+DPF Exhaust After Treatment
- Active Power Control Power
Management System
- Power / ECO Mode
- Foot Throttle Control
- Automatic Fuel Bleed System
- Extended Life Coolant
- High Capacity Radiator and
Hydraulic Oil Cooler Mounted Side
by Side on Swing out Frame
- Double Element, Air Cleaner
ELECTRICAL
- 12 volt System with 60 amp
Alternator
- Heavy Duty, Quick Access Battery
- Halogen Work Lights, Front and
Rear
- Multi-Informational Display
- Sealed Rocker Switches
- Back-up Alarm
- Horn
- TFM (Takeuchi Fleet Management;
GPS)*
UNDERCARRIAGE AND FRAME
- Long Track Frame
- Fully Welded Frame with Integrated
Cross Members
- Front and Rear Tie-Down and Lift
Points
- Double Reduction Planetary Track
Drives
- 2-Speed Travel
HYDRAULIC & WORKING EQUIPMENT
- High Lift Radial Arm Design
- Lower Front Cross Member
- Cushioned Arm Cylinders
- Arm Float with Detent
- Hydraulic Joystick Controls
- Proportional Auxiliary Controls with
Detent
- Pressure Relieving Flat Faced
Coupler Body
- Hydraulic Self Leveling
- Mechanical Quick Hitch
- 14-Pin Connector with Push Button
Control (optional)
- Hydraulic Quick Hitch (optional)
- High Flow Auxiliary Hydraulics
128.0 L / min (optional)
- Pattern Change Valve (ISO or H)
(optional)
OPERATORS STATION
- Tilt-up Operators Station
- Deluxe High Back Adjustable
Suspension Seat
- Rear Pivoting Seat Bar with
Integrated Arm Rests
- Retractable 2 Seat Belt
- ROPS/FOPS
- Pressurized Cab with Roll-up Door,
Air Conditioning, Heat, Defrost, and
Front Wiper (Cab Only)
- Rear Wiper (Cab Standard Equipment in
Europe only)
- AM / FM / MP3 Radio (Cab Optional)
- 3 Point Seat Belt (optional)
Powerful and efficient, the TL8 is engineered to
provide excellent maneuverability, performance,
and value. The heavy duty cross member, twospeed travel, and hydraulic self-leveling are standard
equipment on the TL8. Operator controls include a
multi-function display, hydraulic joystick controls, foot
throttle, and a high back suspension seat. The TL8
provides ample space and comfort for your time on
the job.
The TL8 offers a heavy duty rear door that swings out
providing access to the high capacity cooling module
while the tilt back cab / canopy provide access to the
clustered engine oil filter, primary, and secondary fuel
filters, pump group, control valve, and pilot line filter.
Takeuchi quality and functionality ensures the TL8 will
deliver many years of trouble free service in the most
extreme conditions.
OPERATING PERFORMANCE
Operating Weight - Canopy 3,835 kg
Cab 3,915 kg
Tipping Load 2,730kg
Rated Operating Capacity
* (ISO 14397-1) @ 35%

955 kg
Operating Load at 50% of Tipping Load 1,365 kg
Bucket Breakout Force 30.4 kN
Lift Arm Breakout Force 30.5 kN
Traction Force 40.6 kN
Ground Pressure - Canopy (**320W Track) 30.2 kPa /
**37.2 kPa
Ground Pressure - Cab (**320W Track) 30.8 kPa /
**38.0 kPa
Travel speed - Low 7.4 km/h
High 11.0 km/h
* Operating capacity of compact track loaders is

rated according to ISO 14397-1 at no more than
35% of the tipping load
FLUID CAPACITIES
Engine Lubrication 11.2 L
Cooling System 14.0 L
Fuel Tank Capacity 75.0 L
Hydraulic Reservoir Capacity 39.0 L
Hydraulic System Capacity 58.0 L
ENGINE
Make / Model Kubota / V3307
Engine Displacement 3,331 ml
Rated Output (ISO 14396) 54.6 kW / 2,600 min-1
Maximum Torque 261.1 Nm / 1,500 min-1
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit 72.0 L/min
Auxiliary Flow - High Flow (optional) 128 L/min
Hydraulic System Pressure 21.0 MPa
SAFETY AND HEALTH
Vibration Levels
Hand / Arm < 2.5 m/s²
Body < 0.5 m/s²
Noise Level
Sound Power Level LwA 103 dB
MACHINE DIMENSIONS
A Maximum Lift Height to Bucket Pin 3,030 mm
B Dump Height Fully Raised 2,370 mm
C Dump Reach Fully Raised 730 mm
D Dump Angle 40o
E Rollback Angle 30o
F Track Base 1,390 mm
G Machine Length 2,740 mm
H Transport Length 3,430 mm
I Transport Height (CNP / CAB) 2,130 mm / 2,235 mm
J Departure Angle 30o
K Clearance Circle with Bucket 2,080 mm
L Clearance Circle without Bucket 1,375 mm
M Clearance Circle Rear 1,585 mm
N Track Width 400 mm / 320 mm
O Ground Clearance 310 mm
P Overall Width without Bucket (400W / 320W Track) 1,660 mm / 1,580 mm
Q Bucket Width 1,675 mm

2017 TAKEUCHI TL8 Highflow

2.7 Ton Excavator with New tracks, Quick Hitch and Buckets

2012 KOBELCO SK27SR-5

Wheel Loader Cat 972M 2018 7000 hrs
Battery Iso
E Stops
Auto Lube
Rear Camera
Beacon
FINANCE AVAILABLE https://equifund.com.au/newcastle-machinery-sales
Engine Power @ 1,600 rpm - ISO 14396:2002 253 kW
Gross Power @ 1,600 rpm - SAE J1995:2014 256 kW
Engine Model Cat C9.3B
Net Power @ 1,600 rpm - ISO 9249:2007, SAE J1349:2011 239 kW
Note (1) Cat engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3, EU Stage IIIA, and China Nonroad Stage III.
Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011 1785 N·m
Displacement 9.3 L
Engine Torque @ 1,200 rpm ISO 14396:2002 1781 N·m
Gross Torque @ 1,200 rpm SAE J1995:2014 1799 N·m
Note (3) Cat engines are compatible with diesel fuel blended with following lowercarbon intensity fuels up to: 100% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer.
WEIGHTS
Operating Weight 23196 kg
Note Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control cold start, roading fenders, Product Link, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.
TRANSMISSION
Forward - 1 6.7 km/h
Forward - 2 13.5 km/h
Forward - 3 24.2 km/h
Forward - 4 39.5 km/h
Note Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius.
Reverse - 1 7.3 km/h
Reverse - 2 14.8 km/h
Reverse - 3 26.6 km/h
Reverse - 4 39.5 km/h
SOUND
Note (1) ** For machines in European Union countries and in countries that adopt the EU Directives.
Note (2) ***European Union Directive 2000/14/EC as amended by 2005/88/EC.
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level* 108
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) 69 dB(A)
With Cooling Fan Speed at Maximum Speed - Exterior Sound Power Level (ISO 6395:2008) 109 dB(A)
With Cooling Fan Speed at Maximum Speed - Exterior Sound Pressure Level (SAE J88:2013) 76
With Cooling Fan Speed at Maximum Speed - Operator Sound Pressure Level (ISO 6396:2008) 70 dB(A)
With Cooling Fan Speed at Maximum Value - Note Distance of 15 m (49.2 ft), moving forward in second gear ratio.
AIR CONDITIONING SYSTEM
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).
OPERATING SPECIFICATIONS
Breakout Force 174 kN
Note (1) For a machine configuration as defined under Weight.
Note (2) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Static Tipping Load - Full 40° Turn - No Tire Deflection 35244 lb
Static Tipping Load - Full 40° Turn - With Tire Deflection 14849 kg
SERVICE REFILL CAPACITIES
Cooling System 66 l
Crankcase 23 l
DEF Tank 26 l
Differential - Final Drives - Front 57 l
Differential - Final Drives - Rear 57 l
Fuel Tank 303 l
Hydraulic Tank 114 l
Transmission 58.5 l
HYDRAULIC SYSTEM
Implement System - Maximum Operating Pressure 31000 kPa
Implement System - Maximum Pump Output at 2,250 rpm 373 l/min
Hydraulic Cycle Time - Total 10.1 seconds

2018 CAT 972M M

New KX060-5, get ahead and be one of the first to own the latest Kubota`s

2023 KUBOTA KX060-5

Dump Truck Volvo A30D 11000 Hrs, Tranny Rebuilt

2007 VOLVO A30D

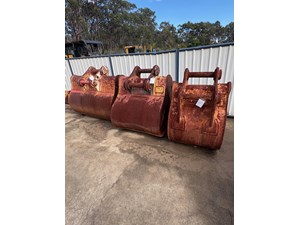

Excavator Bucket 20-25 Ton Mud with BOE
C 460
P 80
E 325
1800 Wide BOE

ECH EXCAVATOR BUCKET 20-25 TON MUD WITH BOE

Excavator Rock Bucket 45-50 Ton
Front Pin 110
Rear Pin 100
C 580
E 465
1800 Wide
Side Cutters and Teeth

VOLVO 40- 50 TON ROCKET BUCKET
